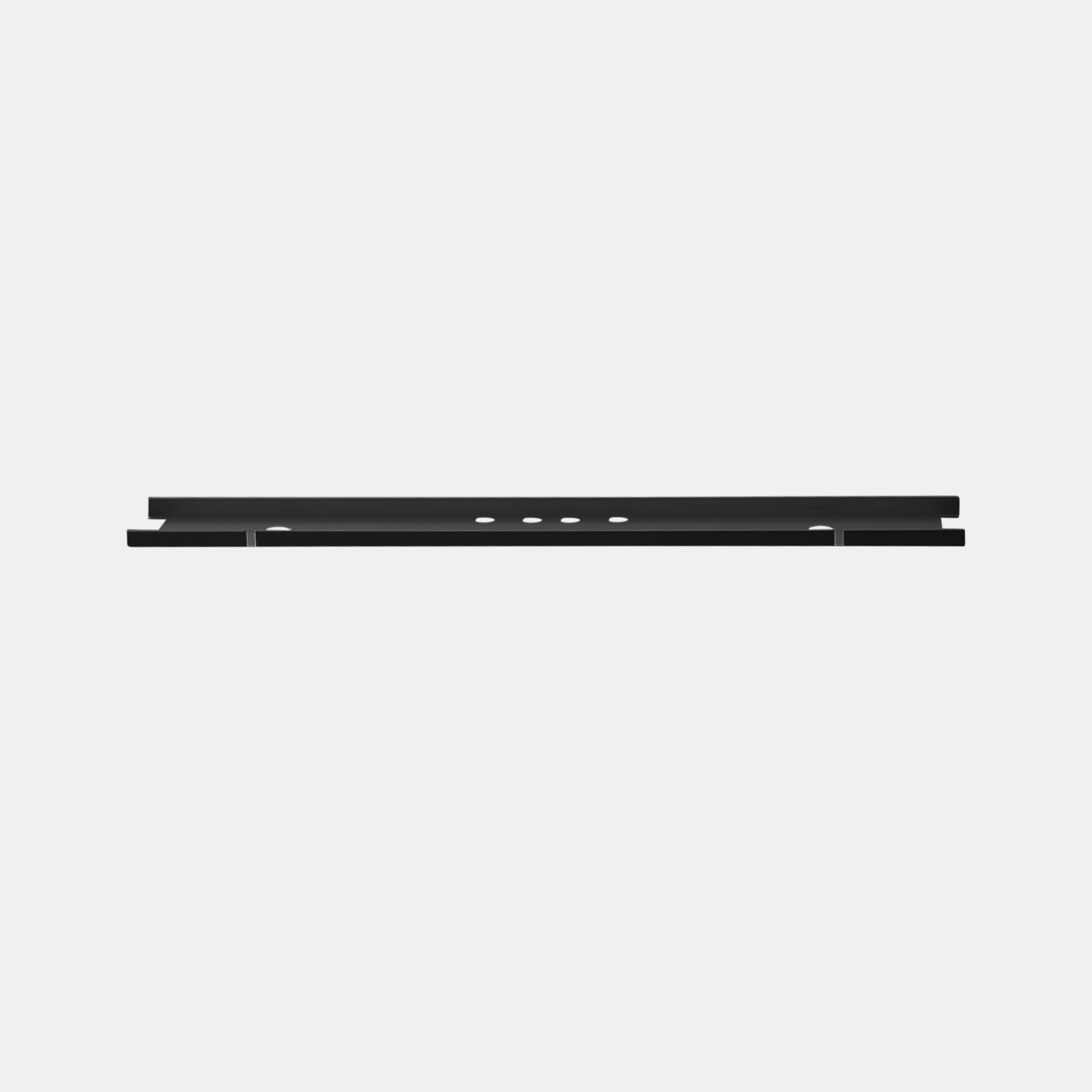

Under desk cable tray: what to check before you buy online

The under-desk reality check that prevents wrong-fit cable trays

Measure the underside you can actually use, not the desktop footprint

A cable tray purchase feels simple until the box shows up and the tray cannot sit where you imagined. The underside of a desk is rarely a clean rectangle. Most desks have hidden elements that steal usable space, including support rails, crossbars, drawer hardware, grommet cutouts, or a center beam that runs front to back.

Start with three measurements that reflect reality:

• Usable depth: Measure from the front edge of the underside to the first obstruction behind it, such as a rail or apron. This number is often smaller than the desk depth you see from above.

• Usable width: Measure the open span between the desk’s left and right underframe elements. If the frame has side rails, measure between the rails, not between the legs.

• Clearance height: Measure how far below the underside you can safely add hardware before it becomes a knee or shin hazard when you sit, cross your legs, or shift in your chair.

If a tray listing only mentions “fits most desks,” treat that as marketing shorthand. A tray only fits your desk if you can mount it in a location that preserves legroom and avoids frame collisions.

Identify no-mount zones that online listings do not highlight

Before picking a tray size, map what cannot be drilled into or clamped onto. The most common conflict points show up in the same areas:

• Front rail or apron: Often blocks a tray from being centered, especially if you need knee clearance.

• Center crossbar: Common on sturdier frames, and it can force the tray to one side.

• Cable grommet hardware: Some grommets have large washers or plastic cups underneath that compete with tray placement.

• Drawer slides and modesty elements: These frequently live where you least expect them.

• Electronics housings: Particularly relevant on height-adjustable desks, where control boxes and motor cables occupy prime space.

Knee and shin clearance mapping that keeps the desk comfortable

A tray can technically fit and still be a daily annoyance. The under-desk area is a movement zone. To keep comfort intact, mark the “impact band” where your knees rise and your legs shift. A simple approach works well:

1. Sit normally and slide your chair in to your typical working distance.

2. Note where your knees approach the underside when you lean forward.

3. Stand up, sit down, and move your legs side to side as you would in a long work session.

4. Treat that whole band as off-limits for bulky power bricks and low-hanging hardware.

In our own setups, comfort is a non-negotiable requirement because cable management should disappear into the background. The goal is a cleaner workspace, not a desk that feels cramped.

Inventory what actually needs to live in the tray

Cable trays are purchased for cables, but they are kept for the awkward things that create visual clutter. Most workstations are dominated by power gear, not cables.

Make a quick list:

• Power strip or surge protector length

• Number of power bricks and their approximate bulk

• Docking station power supply

• Monitor adapter blocks, if any

• USB hubs, audio interfaces, small adapters

• Cable types and thickness: AC, USB-C, HDMI or DisplayPort, Ethernet

This inventory gives you a realistic sense of tray volume requirements and helps you avoid overstuffing that can trap heat and create messy tangles.

For a baseline reference when comparing tray styles and layouts, our Under-Desk Cable Management accessory represents the kind of under-desk solution designed to hold the essentials while keeping cables contained and easy to route.

Mounting methods that decide stability, desk protection, and long-term satisfaction

Screw-mount trays and why permanence can be worth it

Screw-mounted trays tend to deliver the most stable result because they become part of the desk. They resist sag, stay aligned when you add or remove devices, and do not shift when you bump cords with your feet.

When you buy online, stability depends on the mounting system as much as the tray itself. Look for details that indicate the tray is meant to be a fixture rather than a temporary add-on.

Hardware cues that signal a more reliable mount

Listing photos can reveal more than bullet points. A few details that matter:

• Mounting bracket thickness: Thin brackets can flex under uneven loads.

• Hole pattern and spacing: A wider footprint distributes load better than a tight cluster of holes.

• Lip design and rigidity: A stronger lip helps prevent items from sliding and can add stiffness to the tray’s shape.

• Included fasteners: Listings that show the actual hardware reduce guesswork during installation.

Screw mounts are best when you want a clean, consistent setup and you are comfortable making small, hidden holes under the desk.

Clamp and no-drill approaches and what to validate before buying

Clamp-mounted and no-drill approaches can be practical when you want a removable setup or are working with a desk surface you do not want to drill. They can also be helpful in shared workspaces where desks may be reconfigured.

The risk is subtle. Clamps rely on edge clearance and surface geometry. If your desk edge has a beveled profile, a thick apron, or a lip that interferes with the clamp jaw, you can end up with a tray that cannot seat properly or that sits slightly crooked.

Validate three things:

• Desktop thickness range: Confirm the clamp can actually span the thickness of your desk.

• Edge clearance: Ensure there is enough flat space for a clamp to grip without pressing into a decorative profile.

• Cable direction: Confirm you can route cords away from the clamp area so cords are not pinched.

Desk material compatibility that prevents damage and disappointment

Different surfaces handle pressure and fasteners differently. Solid wood is forgiving, but veneer and laminate can chip if drilled incorrectly. Clamps can leave marks if overtightened, especially on softer finishes.

If preserving the desk finish matters, prioritize mounting methods that keep pressure distributed and avoid metal-on-finish contact points. Even when clamps are used, simple protectors can help reduce surface marking, and careful tightening beats brute force every time.

Tray capacity that is based on volume, weight, and cable bend radius

Power bricks are the real reason trays feel too small

A tray can hold many cables and still fail to hold the bulk of your setup. Power bricks and transformers dominate volume and weight. They also create the most visual clutter if left out in the open.

A better way to evaluate capacity:

• Volume: Will the tray hold bricks without stacking them into a tight pile?

• Weight: Can the mount support a concentrated load near one side?

• Access: Can you unplug and replace one adapter without pulling everything out?

Try to avoid stacking bricks directly on top of each other. Spaced placement is safer and easier to service. It also helps reduce heat concentration. The tray should be an organizer, not a compression chamber.

Bend radius and connector strain that quietly destroys cables

Cable damage often starts at the connector, not along the cable. Tight bends under a desk can stress USB-C ports, kink HDMI or DisplayPort cables, and eventually cause intermittent connections that are difficult to diagnose.

Practical routing rules:

• Keep gentle curves where cables exit the tray.

• Avoid sharp turns immediately after a connector.

• Use right-angle connectors only when they reduce strain rather than forcing a tighter bend.

• Create a small service loop so a cable has slack before it reaches a device port.

Device-side strain relief that makes upgrades easier later

A clean tray setup should not lock you into a single arrangement. Strain relief is a habit more than a product. Anchor cables in a way that the tray absorbs any accidental tug, not the device port. When you change monitors, swap a dock, or add a charger, this approach keeps the system intact.

Tray exits and lip height that determine whether routing looks intentional

Cables need a defined path out of the tray. If the tray forces cables to spill over the edge, you will see the clutter again, just shifted a few inches.

When evaluating tray design, consider:

• Rear exit paths: Useful when your desk sits near a wall and cables drop straight down behind the desk.

• Side exits: Helpful when the best drop zone is near a desk leg or when you want the descent to the floor on one side.

• Center exits: Useful if you are routing into a vertical organizer.

Lip height matters because it prevents items from sliding during everyday movement. A shallow lip may look sleek, but it can allow power bricks to shift and create noise or tangled routing.

Materials and finish details that protect cables and keep the setup quiet

Metal versus plastic and what the choice really affects

Most buyers focus on appearance, but the material choice changes how the tray behaves under load.

• Metal trays: Typically resist sag better and can feel more rigid, but they can rattle if cables and adapters are not secured.

• Plastic trays: Often lighter and can be quieter, but they may flex under uneven loads depending on design.

The best outcome comes from secure routing and thoughtful placement, regardless of material. A strong tray is only as clean as the system you build inside it.

Edge design that prevents abrasion and unexpected wear

Under-desk cables move. Chairs roll, feet brush cords, and devices get added and removed. Over time, sharp edges can wear cable jackets.

Look for details that reduce abrasion:

• Smooth edges where cables exit

• Rounded corners at cutouts

• Coated surfaces that do not create rough friction points

Micro-abrasion hotspots that show up in real workdays

The most common friction zones are where cables exit the tray and where they transition toward devices. If a cable rubs the same point every day, that contact becomes a wear pattern. A tray that guides cables through smoother exits makes a difference over months of daily use.

Noise control for under-desk electronics

A tidy tray should be quiet. Metal-on-metal contact and loose bricks can create rattles when you shift your legs or adjust your chair.

Simple practices reduce noise:

• Strap bricks so they cannot slide

• Separate bulky adapters rather than stacking

• Keep cable bundles snug but not stretched tight

• Avoid letting connectors rest against the tray edge where they can tap during movement

Noise control is not about being fancy. It is about preventing small annoyances that make the setup feel unfinished.

Heat, power safety, and cable integrity when electronics are hidden

Airflow habits that prevent cramped, warm piles of adapters

A cable tray is a storage area, but it should not become a sealed pocket. Power adapters and charging bricks can get warm in normal use. The safest approach is to give them space and avoid compressing them together.

Keep these habits:

• Do not pack bricks tightly into a stack

• Avoid wrapping cords around a warm adapter

• Keep ventilation openings unobstructed if any adapter has them

• Leave room to access plugs without yanking cords

Practical safety checks that stay honest and realistic

Online product pages can make any accessory look perfect. A safer approach is to treat power management as a system with a few grounded rules:

• Use a reputable power strip or surge protector appropriate for your devices

• Avoid overloading outlets with too many high-draw devices on one strip

• Replace damaged cables and worn adapters rather than hiding them in a tray

• Keep liquids away from the workspace and avoid routing power cords where spills are likely

Strain relief and snag prevention for everyday movement

Cables fail when they are pulled, pinched, or repeatedly tugged at the connector. A tray should reduce that risk, not hide it.

Use anchor points so a tug transfers to the tray or desk, not to a laptop port or monitor input. Ensure cables do not cross into chair wheel paths, and keep the main descent to the floor in a place where your feet do not catch it.

A simple movement test that reveals issues immediately

Before declaring the job done:

1. Roll your chair in and out.

2. Move your feet through your normal resting positions.

3. If you have a height-adjustable desk, raise and lower it through the full range.

4. Watch for any cable that pulls tight, scrapes a leg column, or snags.

This test catches the problems that create long-term frustration.

Standing desks need motion-proof cable tray planning

The movement loop that stays tidy at every height

A standing desk changes cable management because the desk moves while the wall outlet does not. The tray becomes part of a moving platform, so cables must have controlled slack.

The goal is a deliberate loop that extends and retracts smoothly without hanging like a loose vine. Place slack where it will not interfere with legs, feet, or the desk frame.

A practical routing concept:

• Keep power distribution and adapters in the tray, so they move with the desk

• Route a single main power line toward the floor

• Create a controlled slack loop near the point where the cable transitions from moving desk to stationary outlet

What changes when a desk rises and lowers every day

Height-adjustable desks often include control boxes, motor cables, and frame components that occupy under-desk real estate. Tray placement must account for these elements, and cable routing must avoid friction points.

Key considerations:

• Keep cables away from scissor mechanisms or moving joints

• Avoid routing across sharp frame edges

• Make the vertical descent consistent so it does not swing into leg columns

Clean routing path design that separates moving and stationary segments

Think of the system in two zones:

• Moving zone: Everything attached to the desktop and frame that rises and lowers together

• Stationary zone: The wall outlet, floor run, and any cable segment that stays fixed

The connection between these zones is where you place your slack loop and where you benefit most from controlled vertical management.

When evaluating how cable management integrates with a height-adjustable setup, our Standing Desk is a useful reference point for understanding how a moving workstation changes routing priorities.

Desk-surface power choices that reduce tray overload and shorten cable runs

Desktop-integrated power that keeps chargers where you use them

One reason trays get overloaded is that everything is routed downward, even items that are used on the desktop daily. When power access is on the work surface, the most-used cables can stay short and local.

A desktop-integrated module can help create a simpler system:

• Shorter charging cables on the surface

• Fewer long runs down to the tray

• A cleaner look around the desk perimeter

If your work involves frequent plugging and unplugging, this approach can reduce the urge to keep extra adapters dangling off the edge.

For a desk-surface integrated option, our In-Desk Power Module represents the concept of bringing power to the desktop so fewer cables need to drop down into the tray.

Edge-mounted power that supports flexibility without committing to permanent changes

Some workstations change often. You might reconfigure the desk layout, rotate between devices, or share the workspace. An edge-mounted unit can make power access convenient without altering the desktop surface.

This style is also useful when you want to test a setup before committing to permanent placement.

Fit checks that matter for edge-mounted units

Before buying, confirm:

• Desktop thickness and clamp range

• Clearance under the edge for the clamp body

• Cable direction so cords do not cross your leg space

• Placement that avoids the chair arm zone

For a removable, edge-mounted option, our Clamp-On Desk Power Unit aligns with the goal of accessible power while keeping changes to the desk minimal.

The missing piece in tray-only setups is the vertical cable path

One controlled descent beats multiple visible drops

A cable tray can hide adapters and shorten visible runs, but it does not automatically manage the path from desk to floor. If five cables drop down in five different places, the desk still looks messy from the side.

A cleaner approach is to create one main descent point. This reduces visual noise, reduces snag risk, and makes the whole setup easier to understand when you need to service it.

Building a controlled vertical path that stays serviceable

A dependable vertical path has three characteristics:

• Anchored near the tray: Cables exit the tray and immediately enter the controlled descent.

• Guided mid-way: Cables are constrained so they do not swing into legs or feet.

• Relaxed near the floor: The bottom has enough slack to reach the outlet without tension.

Serviceability that keeps the system from collapsing during upgrades

The best cable management is the one you can modify without ripping everything out. Plan for change:

• Leave a little spare space in the tray

• Bundle cables in a way that allows one cable to be added or removed

• Label if multiple similar cables run together, especially for multi-monitor setups

A dedicated vertical organizer helps the descent stay clean and predictable. Our Spine Cable Management supports the concept of a single controlled drop that visually disappears instead of dangling freely.

Desk structure differences that decide where a tray should sit

Minimalist desks versus desks with aprons and hidden structure

Desks that look similar from above can behave very differently underneath. A minimalist desktop with open legs offers more mounting freedom. A desk with an apron or modesty-like front element can reduce usable depth and create knee clearance constraints.

The buying mindset should match your desk’s underside reality:

• If the underside is open, you can often center a tray and route cleanly

• If the underside is busy, you may need an offset tray plus a vertical drop strategy

Tray placement that preserves legroom and visual symmetry

A tray does not need to be centered to look intentional. In many real setups, an offset position is cleaner because it aligns with where the main cable descent will run and avoids knee zones.

Common placement strategies:

• Rear offset near a grommet: Keeps cables short and hidden

• Side offset near a leg: Works well with a vertical drop organizer

• Split approach: One tray for power gear, another area for data routing, depending on desk geometry

Clean underside geometry cues that simplify installation

An underside that works well for trays has:

• A flat zone with enough width for mounting

• Clearance from moving chair and leg zones

• A logical path for cables to exit toward the rear or side

If you are planning around a fixed-height desk profile, our Office Desk serves as a reference for thinking through underside geometry, tray placement, and how a clean workstation can be built without competing with the user’s leg space.

Online buying checks that reduce returns and improve confidence

Listing photos that prove fit instead of implying it

Good listings show the tray mounted under a desk, not just photographed alone. Look for:

• Underside installation photos from multiple angles

• Closeups of brackets and mounting points

• Photos that show cable exits and how cords are routed

If the photos avoid showing the underside, you may be guessing about the very details that determine success.

Specs that matter more than marketing labels

Online listings often use broad categories like “large” or “universal.” More useful details include:

• Internal tray depth and usable width

• Lip height or edge containment design

• Mount spacing and whether hardware is included

• Stated load guidance, treated as a starting point rather than a guarantee

Treat any capacity claim as a guideline and build in margin by planning for space and airflow. A tray that looks full on day one is likely to become messy when your setup changes.

Packaging, finish protection, and what to inspect immediately

Trays can arrive with cosmetic damage if packaging is inadequate. When you open the box, check:

• Edges for bending or warping

• Coating for chips or scratches

• Hardware completeness

• Bracket alignment

Catching issues early makes the install process smoother and keeps the final result looking intentional.

Return-policy reality and the importance of minimizing guesswork

A careful buyer reduces the odds of returns by validating fit and mounting needs before checkout. The more precise your measurements and inventory, the less you rely on “should work” language.

The most effective strategy is systematic:

• Confirm underside dimensions

• Identify conflicts

• Choose mounting method based on your desk material and comfort priorities

• Plan cable routes before installing anything

Workspace-grade cable management across multiple desks without maintenance headaches

Standardization that keeps shared spaces looking consistent

Managing one desk is personal. Managing multiple desks is operational. A consistent approach makes it easier for teams to maintain clean setups:

• Similar tray placement across workstations

• A predictable vertical cable descent point

• A consistent method for securing power bricks and labeling if needed

Consistency also helps when desks move or when a workstation is reassigned. The goal is that anyone can understand the routing without having to decode a custom tangle.

Planning support that helps offices choose a maintainable setup

For teams building or refreshing a workspace, selection is only one piece. Delivery coordination, consistency of furnishings, and guidance on what works together can reduce friction during setup.

Our office furniture ordering and delivery support page exists for customers who want to plan an office environment with fewer surprises and more clarity around the overall purchasing and fulfillment experience.

A future-ready cable tray system that stays clean through upgrades

Leave growth room so the system does not break the moment your gear changes

Workstations evolve. A second monitor becomes a third. A dock changes. A webcam and light appear. A clean cable tray system anticipates that change by leaving space and keeping routing flexible.

Practical habits:

• Keep a few spare strap points open

• Avoid tying everything into one immovable bundle

• Route cables so one item can be swapped without disturbing the rest

Installation sequence that produces a clean result without overpromising

A systematic install tends to look cleaner than an improvised one. A reliable sequence:

1. Decide tray location based on comfort and frame conflicts

2. Mount the tray securely

3. Place the power strip and bricks with airflow in mind

4. Route power cables first, then route data cables separately

5. Create a single controlled descent to the floor

6. Test movement and strain points

7. Tighten and tidy only after the system passes the test

Quick validation routine that catches the small problems

A few minutes of testing prevents long-term annoyance:

• Sit and shift your legs to confirm clearance

• Roll your chair in and out to confirm nothing snags

• Check that cables exit the tray smoothly without sharp bends

• Confirm that unplugging one device does not tug another

A workstation visual standard that feels intentional from every angle

From our perspective as a furniture brand, cable management is about making the workspace feel calm and purposeful. A clean standard is simple:

• The desktop stays clear of unnecessary cables

• The tray holds the bulky power items and organizes routing

• There is one controlled drop to the floor

• Nothing hangs where your legs move

• Changes and upgrades do not require rebuilding the entire system

Cable tray comparison table that helps you choose safely online

Buying factor	What to check in online listings	What it protects you from
Usable underside dimensions	Tray length, depth, bracket spacing, underside photos	Buying a tray that collides with rails or steals legroom
Mounting method compatibility	Screw pattern, clamp range, edge clearance needs	Installs that shift, sag, or damage desk surfaces
Real capacity needs	Internal volume, lip height, room for bricks	Overstuffed trays that look messy and trap heat
Cable routing design	Exit points, edge finish, space for gentle bends	Frayed cables, strained connectors, tangled routing
Serviceability	Space to add a device, ability to access plugs	A setup that becomes unmanageable after one upgrade
Comfort and clearance	Low-hanging parts, knee-zone mapping	Constant bumping and an uncomfortable sitting experience



A checklist for buying an under desk cable tray online

• Measure usable underside depth, width, and clearance height

• Identify rails, crossbars, drawers, or electronics that block mounting

• List all power bricks, adapters, and strips that must be stored

• Choose mounting based on desk material and how permanent you want the install to be

• Confirm routing plan for cable exits and a single controlled drop to the floor

• Validate bend radius so cables do not kink or stress ports

• Plan airflow and spacing so adapters are not packed tightly

• Perform a movement test after installation, then tighten and tidy only after it passes
